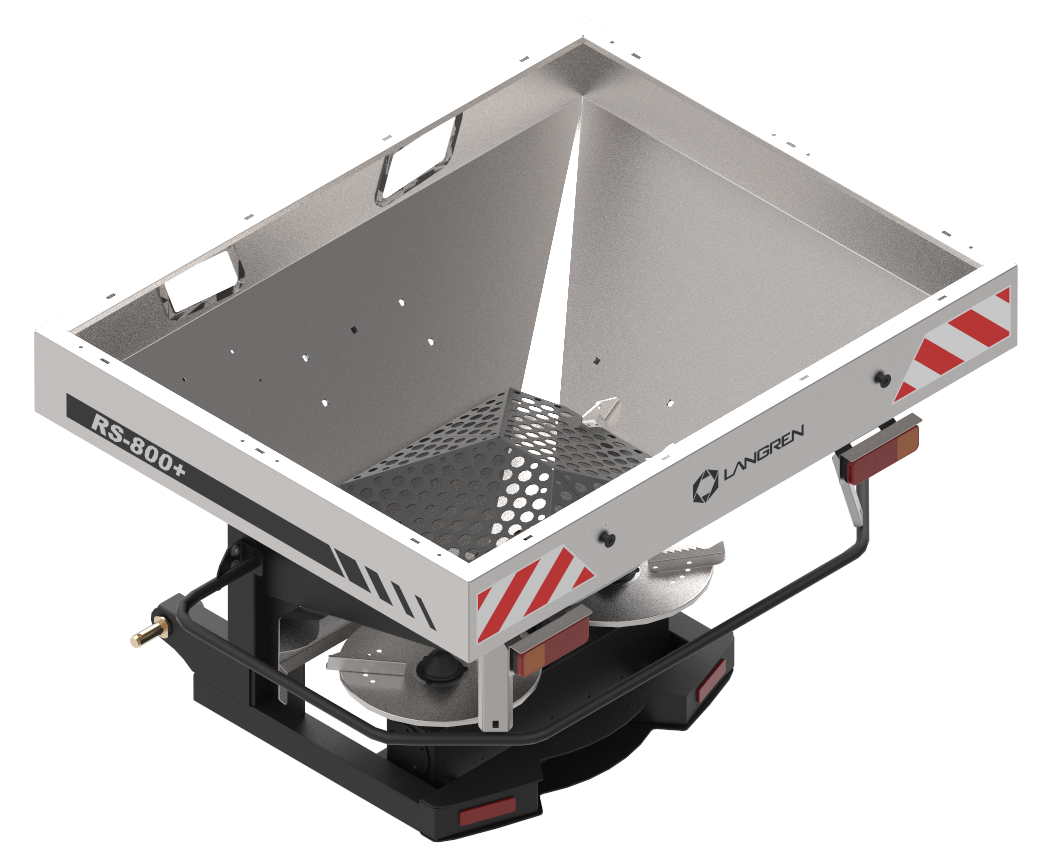

Electric fertilizer spreader RS 800 with electronic dose control and GPS

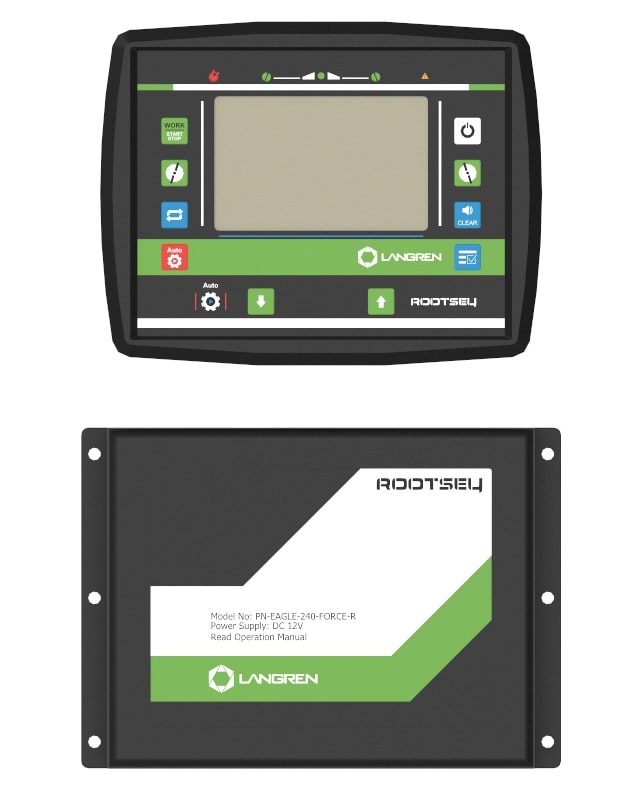

Our new spreader is equipped with reliable and easy-to-use Rootsey electronic dose control. The use of such a solution guarantees high precision of fertilization, regardless of the speed at which the tractor with the spreader moves. The control is complemented by a GPS speed sensor, which reads the current speed with a precision of 0.1 km and enables quick aggregation to any tractor on the farm without the need for the troublesome installation of the speed sensor on the wheel. Opening and closing the outlets can be done with just one button.

Total width 1.6 m
3-point hitch Cat I or II
Filling height 107cm
The range of spread fertilizer is 10-18 m
Width of the filling opening: 115 cm
Electric shutter control (left + right) as standard

ELECTRONIC CONTROL FUNCTIONS

• Electronic regulation of the sowing rate depending on the driving speed (the set dose does not change after changing the working speed)
• Manual or automatic operation mode
• Measurement of driving speed using a GPS module in automatic and manual mode
• Measurement of driving speed using an inductive sensor in automatic and manual mode
control of dosing slides
• Determining the dosing opening based on selected parameters;

AUTO TEST

• Switching off with one sowing button for half the working width
• Possibility to adjust the dose while driving
• Introduction to the settings of your own fertilizer based on a calibration test
saving settings
• Measurement of the sown area and hours worked
• Automatic switching on/off of the machine when stopping/starting, used especially on headlands, entries, exits and wedges

MINIMIZATION OF PRODUCTION COSTS

Thanks to our electronic control, you reduce uncontrolled fertilizer output related to speed fluctuations, and thus shorten valuable working time.

PAINT COATING

During the production process, all components are thoroughly cleaned and then covered with two layers of powder paint (priming paint and UV-resistant paint). The working elements (seeding discs, blades, shutters at the bottom of the hopper and all covers) are made of stainless steel, ensuring long-term and reliable operation of the spreader.

EFFECTIVE ECCENTRIC MIXER

The agitator mounted on an eccentric ensures a free and even flow of fertilizer directly onto the disc, and thanks to involuntary forced movements, it does not lead to crumbling and dusting, even with closed gates and the tractor's PTO drive. Moreover, this solution prevents damage to the mixer teeth if any unwanted object gets into the fertilizer (e.g. a lump of fertilizer, a branch, etc.).

BORDER SOWING

Our offer also includes border spreading paddles adapted to all LANGREN spreaders. The paddles are used to spread fertilizer at the field border. They enable fertilization near the edges of fields or ditches to avoid crop losses and to avoid spreading fertilizer to a nearby watercourse or adjacent field. Border sowing is therefore important not only for crop yield but also for the environment.

EQUIPMENT

The standard equipment of the spreader includes:

• electronic control set
• calibration test kit
• road lighting
• machine tilt indicators
• GPS antenna

OPTIONAL :

• Frame cover, mounted on the tank, which makes the spreader's operation independent of weather conditions, opened with a lever, locked with rubber tensioners, screwed structure, which allows you to save transport space and reduce shipping costs
• Extensions increasing the capacity to 1,200 liters
• PTO shaft with overload clutch
